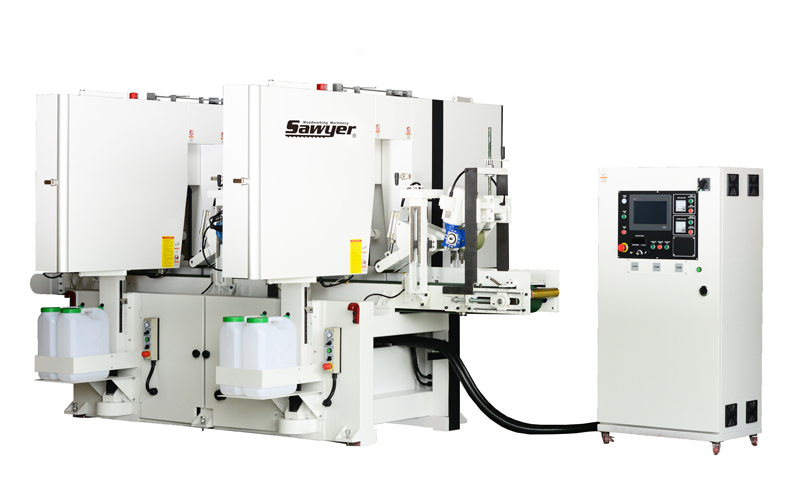

TS-multi-heads
  • Specifications
  • Model TS-300XL TS-400XL TS-510XL TS-650XL TS-900XL TS-1300XL
    Maximum Material Size(W x H) 300x200mm 400x200mm 510x200mm 650x200mm 900x200mm 1300x200mm
    Distance From Blade To Conveyor 2-150mm
    Minim)Um Cut Piece 2mm
    Saw Wheel Diameter 38" x2(970mm x2)
    Conveyor Height From Floor 36-1/2"(926mm)
    Feed Speed (Variable) 0~30 m/min
    Saw Wheel Motor 30HP with Inverter 30HP with Inverter 30HP with Inverter 30HP with Inverter 40HP with Inverter 40HP with Inverter
    Conveyor Motor 1HP 1HP 2HP 3HP 3HP 5HP
    Blade lift motor 1HP 1HP 1HP 1HP 1HP 1HP
    All specifications and design are subject to change without notice.
    ***STANDARD EQUIPMENT***
    PLC CONTROL WITH TOUCH SCREEN (PLC)
