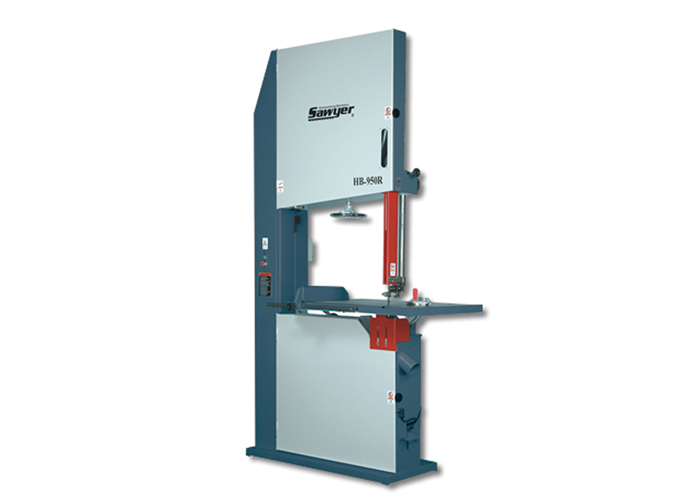

HB-950A,600A
  • Specifications
  • Model HB-600A HB-950A
    Saw Wheel Diameter 600mm(23-1/2") 940mm(37")
    Table size 800*605mm(31 1/2"*23 3/4") 1150*800mm(45"*31 1/2")
    Table Tiliting 0°~45° 0°~45°
    Throat Capacity 580mm(22-7/8") 927mm(36-1/2")
    Height capacity 350mm(13-3/4") 560mm(22")
    Width of wheel 50mm (2") 50mm (2")
    Blade speed 710mm(4458F.P.M) 553mm(5500F.P.M)
    Blade length 4410mm-4480mm(173-5/8"~176-1/2") 6580mm-6630mm(259"~261")
    Blade width 6.3mm~50mm(1/4"~2") 6.3mm~50mm(1/4"~2")
    Motor 5HP 10HP
    Dust hood diameter φ4"*2 φ4"*2
    Net weight 340kgs 720kgs
    Gross Weight 450kg 930kg
    Machine Size(L*W*H) 1060*800*2070mm 1620*830*2880mm
    Packing Size (L*W*H) 2160*630*1100mm 2970*760*1550mm
    Design and specifications are subject to change without prior notice.
