• Specifications

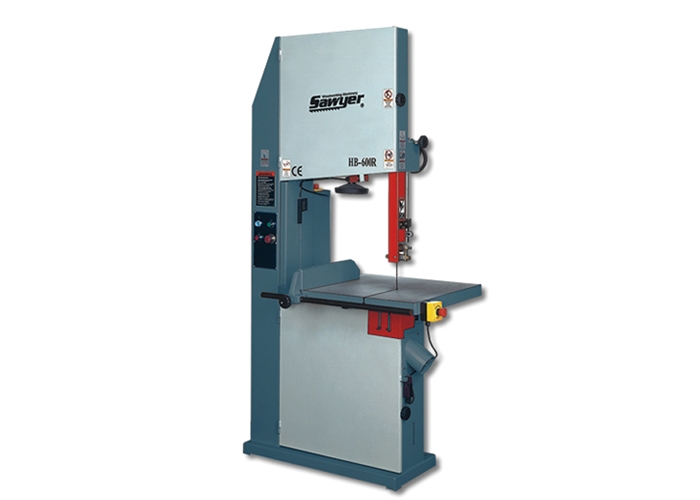

  • Model HB-450R HB-500R HB-600R HB700R
    Saw Wheel Diameter 450mm(18") 500mm(20") 600mm(24") 700mm(28")
    Table 610*500mm(23- 1/2"*19" ) 680*520mm(26-3/4"*20-1/2") 800*605mm(31-1/2"*23-7/8") 1000*700mm(39-3/8"*27-5/8")
    Table Tilting 0°~45° 0°~45° 0°~45° 0°~45°
    Throat Capacity 430mm(17") 470mm(18-3/4 ") 580mm(22-7/8 ") 678mm(26-3/4")
    Height Capacity 245mm(9-3/8") 300mm(11-7/8") 350mm(13-3/4") 420mm(16-1/2")
    Width Of Wheel 30mm 35mm 35mm 40mm
    Blade Speed 995RPM (4685 F.P.M) 850RPM(4450 F.P.M) 710RPM(4458 F.P.M) 680RPM(4980 F.P.M)
    Blade Length 3855~3885mm (151-3/4"~153") 3969~3999mm (151-1/4"~157-1/2") 4410~4480mm (176-5/8"~176-3/8") 5130~5180mm (202"~204")
    Blade Width 6.3mm~32mm(1/4"~1-1/4") 6.3mm~32mm(1/4"~1-1/4") 6.3mm~32mm(1/4"~1-1/4") 6.3mm~32mm(1/4"~1-1/4")
    Dust Hood Diameter Ø4"*1 Ø4"*1 Ø4"*1 Ø4"*1
    Motor 2HP 2HP 3HP 5PH
    Net Weight 210kg 280kg 315kg 450kg
    Gross Weight 280kg 350kg 450kg 600kg
    Machines Size(L*W*H) 860*560*1890mm 970*700*1880mm 1060*800*2070mm 1330*900*2290mm
    Packing Size(L*W*H) 2160*560*890mm 1970*580*1010mm 2160*630*1100mm 2380*650*1210mm
    Design and specifications are subject to change without prior notice.
