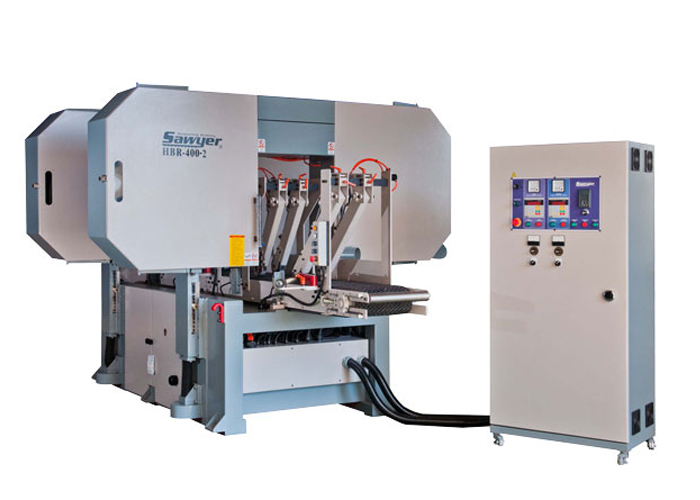

HBR-400-2
-
Specifications
-
****STANDARD EQUIPMENT****Model HBR400-2 Maximum Cutting Capacity(WxH) 12"x 16 "(400x400 mm) Distance From Blade To Conveyor 1/4"~12"(5~300mm) / (2~300mm) Minimum Cut Piece 2 ~5mm Saw Wheel Diameter 28"(700mm)/32"(800mm)/36"(915mm) Saw Blade Length 196"(4980mm) / 231"(5860mm) / 238 1/2"(6060mm) Saw Blade Width 2~4"(50~100mm) Conveyor Belt Sizes(WxH) 16"x311"(400x7900mm) Feed Speed(Variable) 0~30 m/min Conveyor Height From Floor 37"(940mm) Saw Wheel Motor 20~40 HP Blade Lift Motor 1/2 HP ~ 1HP Feeding Motor 3HP ~ 7.5HP Dust Hood Outlet Diameter 4" OPTION 5", 6" x 3 FOR ONE HEAD Design and specifications are subject to change without prior notice.
1.HYDRAULIC BLADE TENSION SYSTEM
2.BLADE LIFT DIGITAL CONTROL
3.OIL MIST COOLING SYSTEM
4.SAWBLADE x 1 PC
5.TOOL BOX WITH SERVICE TOOLS
OPTION
1.PLC CONTROL WITH TOUCH SCREEN
