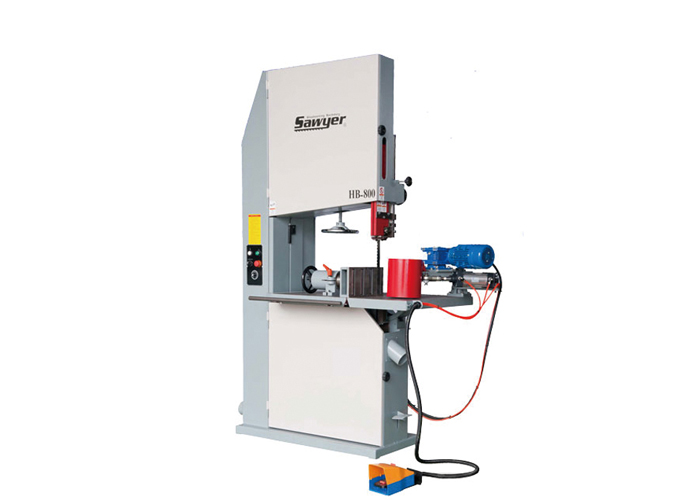

HB-800+HF-200A
-
Specifications
-
Model
HB-800 Saw Wheel Diameter
800mm(32") Sawblade Width
40mm Table Size
1150x800(45-1/4" x 31-1/2") Table Height From Floor
97mm(32") Table Tilting
0~30 degree Max. Distance From Guide To Table
370mm Saw Blade Length
5485~5515mm(216" ~217-1/8") Saw Blade Width
24-41mm(1'~1-1/2") Throat Capacity
778mm(30 5/8") Dust Hood Outlet Diameter
Ø4"*2 Saw Wheel Motor
15HP / 20HP Blade Linear Speed
28m /sec Net Weight / Gross Weight
665/880kg Packing Dimension(L*W*H) 2530*850*1410mm *All specifications and design are subject to change without notice.
HF-200A
SpecificationsModel HF-200A Length of roller 150mm Diameter of roller 200mm Feed speed(Inverter) 1~17m/min Motor 1HP Air pressure 5kgs/cm Fence adjustment range 120mm Feed opening 150mm Net weight/Gross weight 130/150kgs *All specifications and design are subject to change without notice.
