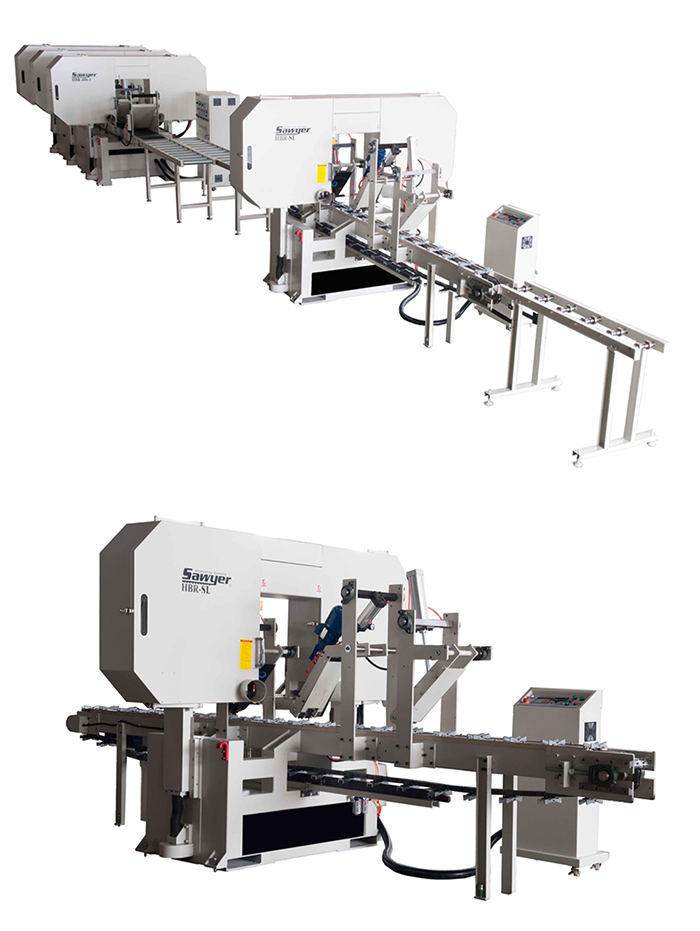

HBR-SL + HBR-400-3
-
Specifications
-
****STANDARD EQUIPMENT****Model HBR-SL Log Size ø100~400mm Distance From Blade To Conveyor 1/4"~10-5/8"(5~270mm) Saw Wheel Diameter 36"(915mm) Saw blade Length 238-1/2"(6060mm) Saw blade Width 4"(100mm) Saw blade Speed 36m/s/ Option Saw Wheel Inverter 17~34m/s Feed Speed (variable) 0~30M/min Conveyor Height From Floor 36-1/2"(926mm) Saw Wheel Motor 40 HP / Option Inverter Blade Lift Servo Motor 1 HP Feeding Motor 3 HP with Inverter Dust Hood Outlet Diameter 6"x3(150mm X3) Machine Dimensions 490x276x225cm Machine Net Weight 2600 KG Machine Gross Weight 3000 KG Standdard Packing PALLET Design and specifications are subject to change without prior notice.
1.HYDRAULIC BLADE TENSION SYSTEM
2.BLADE LIFT DIGITAL CONTROL
3.OIL MIST COOLING SYSTEM
4.SAWBLADE x 1 PC
5.TOOL BOX WITH SERVICE TOOLS
OPTION
1.PLC CONTROL WITH TOUCH SCREEN

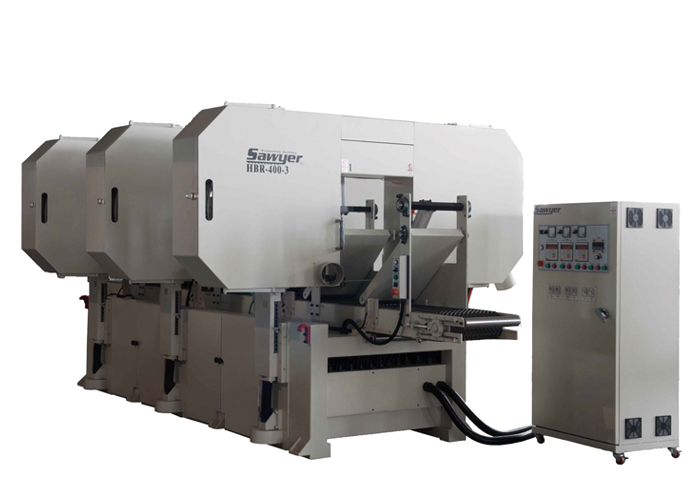

HBR-400-3
Specifications
****STANDARD EQUIPMENT****Model HBR400-3 Maximum Material Size(W x H) 16"x 16"(400x400 mm) Distance From Blade To Conveyor 1/4"~10-5/8"(5~270mm) Saw Wheel Diameter 36"(915mm) x 6 Saw blade Length 238-1/2"(6060mm) Saw blade Width 4"(100mm) Saw blade Speed 36m/s Option Saw Wheel Inverter 17~34m/s Feeding Motor 0~30M/min Conveyor Height From Floor 36-1/2"(926mm) Saw Wheel Motor 30HP x 3 / 40HP x 3 / Option Inverter x 3 Blade Lift Servo Motor 0.5HP x 3 Feeding Motor 7.5HP with Inverter Dust Hood Outlet Diameter 6" x 9(150mm x9) Machine Dimensions 590x270x300cm Machine Net Weight 5070KG Machine Gross Weight 5500KG Standard Packing Pallet Option 2-6 band saw head Design and specifications are subject to change without prior notice.
1.HYDRAULIC BLADE TENSION SYSTEM
2.BLADE LIFT DIGITAL CONTROL
3.OIL MIST COOLING SYSTEM
4.SAWBLADE x 1 PC
5.TOOL BOX WITH SERVICE TOOLS
OPTION
1.PLC CONTROL WITH TOUCH SCREEN
